Superline Winch Line | 1/4" (6mm)

  • Superline UTV Synthetic Winch Line with stainless steel thimble.
  • Image 2
  • Image 3
  • Superline UTV synthetic winch line with optional Grade 100 hook.
  • The Superline ATV Synthetic Winch Line has a bare drum end which works with most ATV/UTV winches.
Price:
$155.00
SKU:
DG-06
Weight:
3.50 LBS
Shipping:
Calculated at checkout


Overview

If your travels take you far off the beaten path, you need to be able to depend on your gear to perform. When it comes to winching, the Superline® Winch Line will not let you down. Made with heat-set Dyneema® SK75 synthetic rope, it is the strongest synthetic winch line on the market.

The Superline® is made with 12-strand Dyneema® SK75 rope that goes through a heat-setting process which stretches it into a denser, smaller diameter. This process nets large strength gains over normal Dyneema® SK75 rope. Not only does this increase safety, but it allows you to install a smaller diameter line on your winch without compromising strength. Using a smaller diameter will take up less space on the drum and the winch will work more efficiently. In some cases you can even install a longer line on your winch.

The Superline® also has excellent abrasion resistance and is coated with polyurethane for UV and chemical resistance. Combine that with only the highest quality hardware and high heat resistant Vectran drum protection, and you have a winch line that is worthy of the toughest vehicle extractions.

Features

  1. Made with heat-set Dyneema® SK75 for ultimate tensile strength
  2. Heat resistant sleeve on the drum end of the line protects against heat and abrasion
  3. Coated with polyurethane for added UV and chemical resistance
  4. Multiple eye options: Soft eye and Winch Puck, gusset tube thimble, or tube thimble and hook
  5. Includes removable Rock Guard for additional abrasion protection when needed

Specifications

Diameter1/4" (6 mm)
Minimum Breaking Strength (MBS)15,000 lbs (6,800 kg)
WLL 2:1 Safety Factor*7,500 lbs (3,400 kg)
WLL 4:1 Safety Factor*3,750 lbs (1,700 kg)
Recommended Winch Rating3,500 - 6,000 lb (1,590 - 2,720 kg)
MaterialHeat-set Dyneema® SK75 synthetic rope
*Safety factor is dependent on application and should be determined by user.

Will This Fit My Winch?

The 1/4" Superline Winch Line works best with winches ranging from 3,500 - 6,000 lbs. For more information on what length/diameter to choose please reference our Winch Line Guide.

Eye Options

Soft Eye + Winch Puck

  • Full Synthetic Rigging (FSR) - No steel or aluminum components used in the eye
  • Safer and lighter
  • Extremely durable Dyneema® chafe material protects the eye from abrasion
  • Large eye size works with many sizes of steel and soft shackles
  • Can connect directly to a bridle without using an additional shackle
  • Stores flush against the fairlead when not in use
  • Winch Puck is easily removable
  • Compatible with most winch line shackle mounts when Winch Puck is removed
  • Winch Puck includes a safety strap to keep hands safe and clear from pinch points
  • Compatible with winch line shackle mounts with removal of Winch Puck

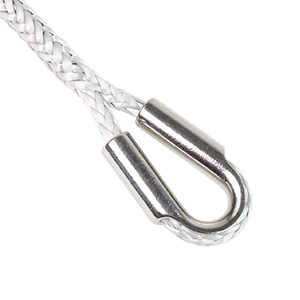

Tube Thimble

  • Heavy duty stainless steel tube thimble will not deform under load
  • Can be used with soft or steel shackles
  • NOTE: Not compatible with most wire rope clevis hooks or winch line shackle mounts

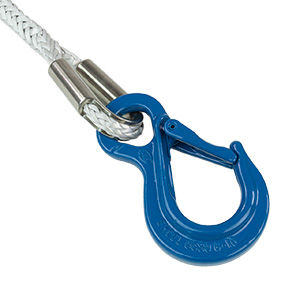

Tube Thimble + Sling Hook

  • Heavy duty stainless steel tube thimble
  • Industrial Grade 100 Sling Hook
  • Heavy duty safety latch will not bend or break
  • Large opening (throat) easily fits rigging
  • Quickest and easiest rigging connection
  • NOTE: Hook is spliced into the line and not removable

Advantages

Over Other Synthetic Winch Lines

  • Highest strength synthetic winch line available - 75% stronger on average
  • Use smaller diameter line without sacrificing strength - either gain winch efficiency or gain winch line length
  • Less stretch than normal SK75 winch lines

Over Steel Wire Rope

  • Safer than steel wire rope
  • Stronger than steel wire rope
  • Extremely lightweight makes it easy to use
  • Floats in water
  • Torque-free
  • No more cut hands from wire splinters or burrs
  • Will not kink like steel wire rope
  • Will not rust

Maintenance

Despite all the benefits that the Superline® Winch Line has over steel wire rope, the proper precautions must be taken when using synthetic rope for winching. Synthetic winch lines are more prone to abrasion than wire rope, so ensure that the winch rope is rigged properly and isn’t rubbing on rocks, trees or other abrasive surfaces while under tension. This is why we include our removable Rock Guard to protect the rope when you can’t avoid contact with abrasive surfaces. Proper use and care is essential to ensure longevity of synthetic rope. For more information on maintenance, visit our Synthetic Rope Maintenance page.


Add to Wish List

Click the button below to add the Superline Winch Line | 1/4" (6mm) to your wish list.


Write your own product review

Product Reviews

  1. Outstanding Product and Customer Support

    Posted by m.oldenkamp@gmail.com on 13th May 2019

    Order this to replace the wire on my 2013 Commander XL4000 winch. Install instruction where top notch. This cable will last a life time with care. Highly recommend

  2. Best winch line available!

    Posted by James on 23rd Mar 2018

    Got my new winch line shipped to my door supreme fast and was very happy with the quality of mater pull products.. Well made durable and lightweight.. My only regret was to forget to order soft shackles.. Would definitely be recommending mater pull to all my friends !

  3. superline

    Posted by chuck on 3rd Jul 2017

    The product is extremely light and compact with unbeatable strength. I am using it as an electric winch cable for my boat trailer. It does not rust or have cable splinters, so is very friendly to handle.

  4. Great Product

    Posted by Mark Duggar on 19th Dec 2016

    Tried out this winch rope the day after it arrived.. Pulled with no problem. Fast shipping on a great product. I recommend this rope to anyone that need a small diameter rope that is super strong.

  5. Very high quality.

    Posted by Unknown on 7th Dec 2016

    One of the best winch lines i've seen. I will put it to the test this weekend.

  6. Nice winch line

    Posted by Unknown on 19th May 2016

    Just wrap end nice and tight with tape when threading through hole on spool, installation is a breeze. Now to try out the strength
