Superline XD Winch Line | 3/8" (9.6mm)
(
1 product review
)
Overview
If your travels take you far off the beaten path, you need to be able to depend on your gear to perform. When it comes to winching, the Superline® XD winch line will not let you down. Made with heat-set Dyneema® SK75 synthetic rope with a Dyneema® protective jacket, the Superline® XD is the ultimate synthetic winch line, bar none.
Normal synthetic winch lines are susceptible to getting grit, such as dirt or sand, caught in the fibers of the rope when in use. This grit will cause abrasion and wear on the interior fibers of the rope as it is tensioned, which significantly decreases its breaking strength over time.
Unlike a normal winch line, the Superline® XD is a double braid rope, which consists of an inner core that supports the tensile load, and an outer cover that protects the core. The cover is made with Dyneema® fiber that provides excellent abrasion protection and completely prevents grit from getting to the core. It also provides 100% UV protection. This makes the Superline® XD the most durable and longest lasting winch line available. The outer cover also features a reflective tracer along the entire length for added visibility.
The inner core of the Superline® XD is made with 12-strand Dyneema® SK75 rope that goes through a heat-setting process which stretches it into a denser, smaller diameter. This process nets large strength gains over normal Dyneema® SK75 rope. This is crucial for a double braid line, since the cover increases the diameter but doesn’t increase breaking strength. This makes the Superline® XD stronger than any other double braid line that doesn’t use a heat-set inner core. The heat-set core is also very dense, which makes it a stronger base for the cover to be braided over.

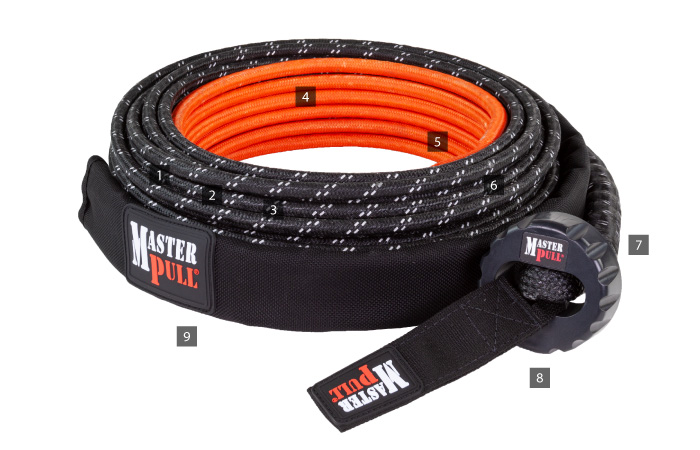

Features
- Dyneema® protective jacket provides ultimate abrasion resistance and UV protection
- Reflective tracer along entire length of line increases visibility
- Heat-set Dyneema® SK75 fiber core for ultimate tensile strength
- Bright orange, high heat resistant jacket on drum end protects from drum heat and abrasion. Also indicates the last 14’ of line on the drum
- Universal drum attachment is compatible with most winches and makes install easy
- Coated with polyurethane for added UV and chemical resistance
- Labeled with minimum breaking strength (MBS) and diameter
- Dyneema® protected soft eye and Winch Puck
- Includes removable Rock Guard for additional abrasion protection when needed
Specifications
| Core Diameter | 5/16" (8 mm) |
| Overall Diameter | 3/8" (9.6 mm) |
| Minimum Breaking Strength (MBS) | 21,700 lbs (9,840 kg) |
| WLL 2:1 Safety Factor* | 10,850 lbs (4,920 kg) |
| WLL 4:1 Safety Factor* | 5,425 lbs (2,460 kg) |
| Recommended Winch Rating | 8,000 - 12,000 lb (3,630 - 5,440 kg) |
| Core Material | Heat-set Dyneema® SK75 synthetic fiber |
| Cover Material | Black Dyneema® SK75 synthetic fiber with reflective tracer |
Will This Fit My Winch?
The 3/8" Superline® XD winch line works best with winches ranging from 8,000 - 12,000 lbs. For more information on what length/diameter to choose please reference our Winch Line Guide.
Eye Option

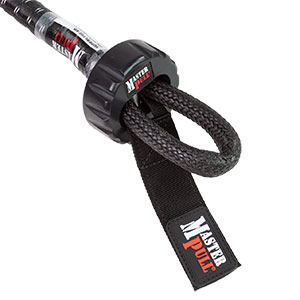

Soft Eye + Winch Puck
- Full Synthetic Rigging (FSR) - No steel or aluminum components used in the eye
- Safer and lighter
- Extremely durable Dyneema® chafe material protects the eye from abrasion
- Large eye size works with many sizes of steel and soft shackles
- Can connect directly to a bridle without using an additional shackle
- Stores flush against the fairlead when not in use
- Winch Puck is easily removable
- Compatible with most winch line shackle mounts when Winch Puck is removed
- Winch Puck includes a safety strap to keep hands safe and clear from pinch points
Advantages
Over Other Synthetic Winch Lines
- Protective jacket provides the best durability
- Reflective tracer increases visibility
- Only synthetic winch line with Black Dyneema® fiber
- Higher breaking strength
- 100% UV protection
- Less stretch than normal SK75 winch lines
- Highest grade hardware
- Universal drum attachment won’t damage the line and takes up little space on the drum
Over Steel Wire Rope
- Safer than steel wire rope
- Stronger than steel wire rope
- Extremely lightweight makes it easy to use
- Floats in water
- Torque-free
- No more cut hands from wire splinters or burrs
- Will not kink like steel wire rope
- Will not rust
